WingFix, Black Edition Part-Q # 20170850

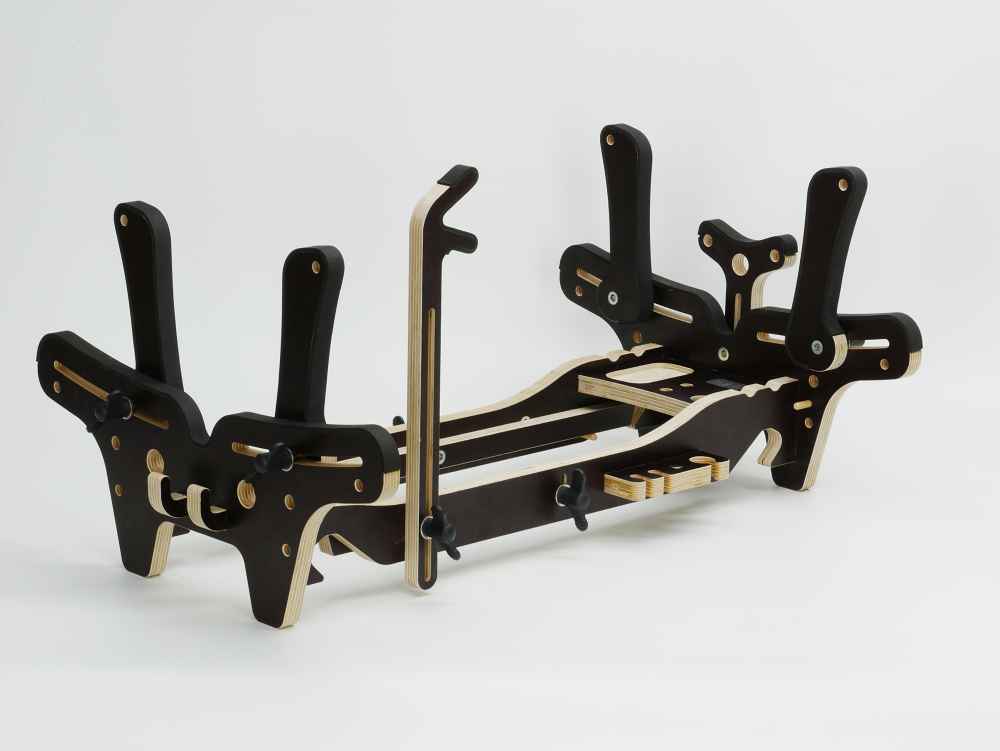

The dimensions of the WingFix model stand are approx. 60 x 40 x 17 cm (LxWxH) without the "ears." The ears can be rotated so that the full support surface can be used. When the ears are upright, there is a clear dimension of approx. 35 cm.

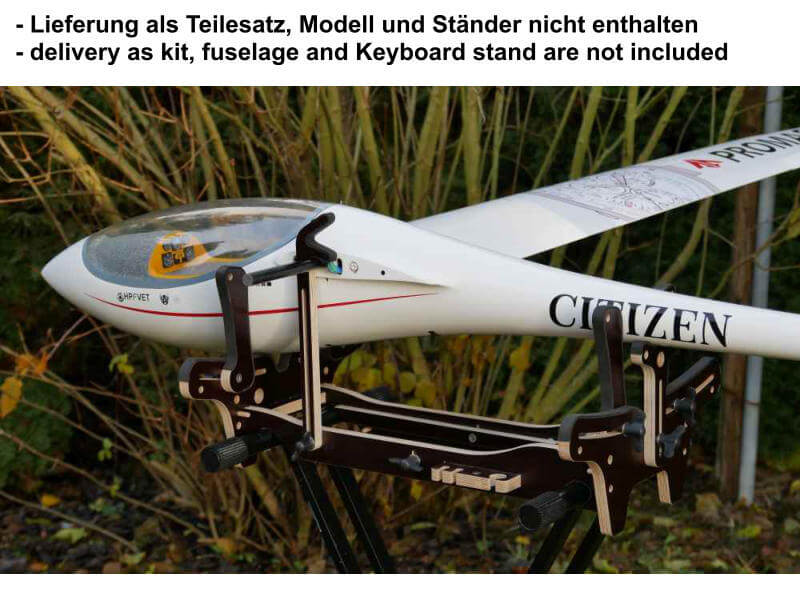

All experiences from previous products have been incorporated into the design of the WingFix. In conjunction with a keyboard stand (28 – 30 mm tube diameter), it becomes a convenient assembly aid at the airfield.

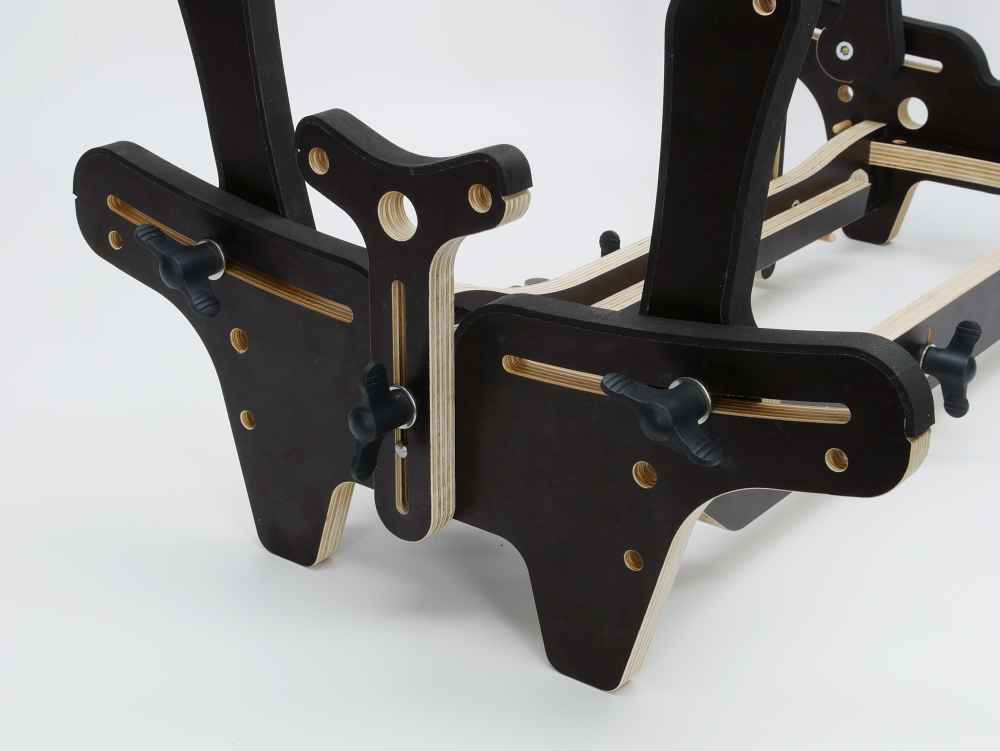

To achieve the widest possible range of applications, the adjustable "ears" that hold the model can be adjusted over a wide range from 10 cm to 35 cm. Slotted holes are provided for this purpose.
Threaded inserts are screwed into the adjustable ears. To fix the ears, they are clamped with ergonomically shaped wing screws with a plastic handle.
The two central clamping screws and the clamping strips ensure a durable connection between the WingFix and the keyboard stand. After loosening the screws in the connecting part, the WingFix can be easily assembled or disassembled.
The WingFix is also suitable for the safe transport of larger fuselages in the car as well as for crafting on the home workbench. To further increase the range of applications, provisions have already been made for additional shelves,
transport handles, small feet, additional fastening options, and cup holders.

To ensure the widest possible range of applications, the following options are integrated:

• Stepless height adjustment ideal for scale gliders and other models with narrow tails
• Wing holders for secure hold of smaller models in wind and as an assembly aid for wing mounting

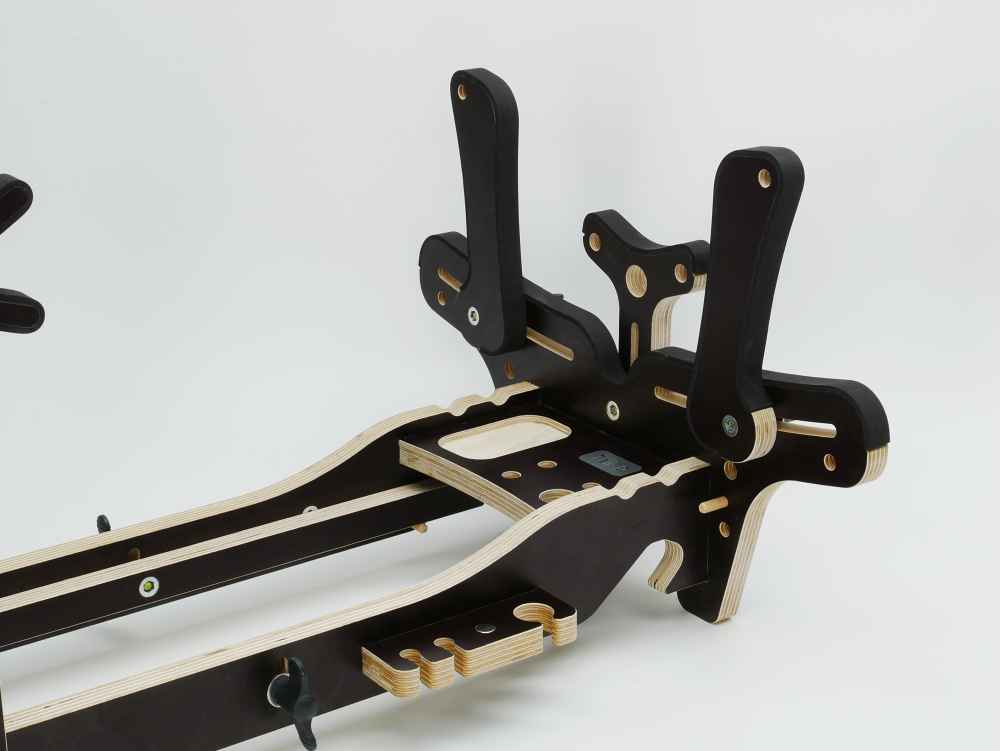

• Tray for small parts and tools including magnetic holder
• Central clamping allows stable connection to the keyboard stand as well as easiest assembly and disassembly
• Narrow middle section to provide sufficient space for landing gear of motor models

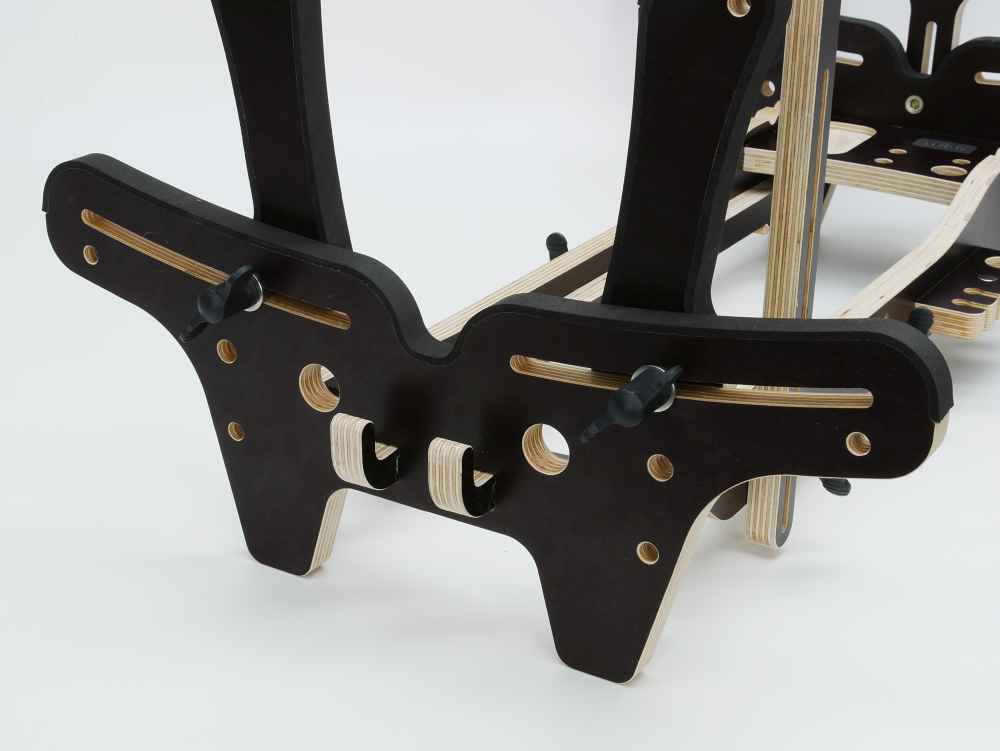

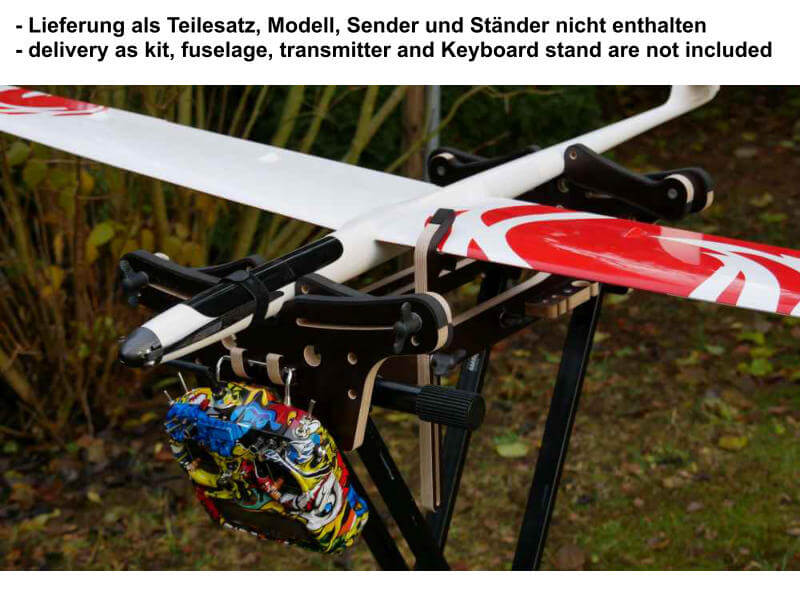

• Hooks for storing handheld transmitters

The wooden parts are CNC milled from high-quality and stable 15 mm birch plywood. The plug-in system makes the model stand additionally stable and easy to assemble. The wooden parts are covered with 3 mm self-adhesive rubber at the support points,
so that the model is securely held and not damaged.

This offer is for a kit with the following components:

• CNC milled parts (unfinished)
• 8 x M6 wing screws
• 10 x threaded inserts with hexagon socket for easy assembly
• 8 x washers
• 1 x dowel pin
• 4 x rubber feet
• 1 x self-adhesive rubber
• 1 x engraved Part-Q logo
• 1 x Neodymium magnet
• 1 x illustrated assembly instructions

Dimensions approx. 60 x 40 x 17 cm without ears (LxWxH)
Clear dimension between the ears maximum approx. 35 cm

The model stands are supplied as a kit.
