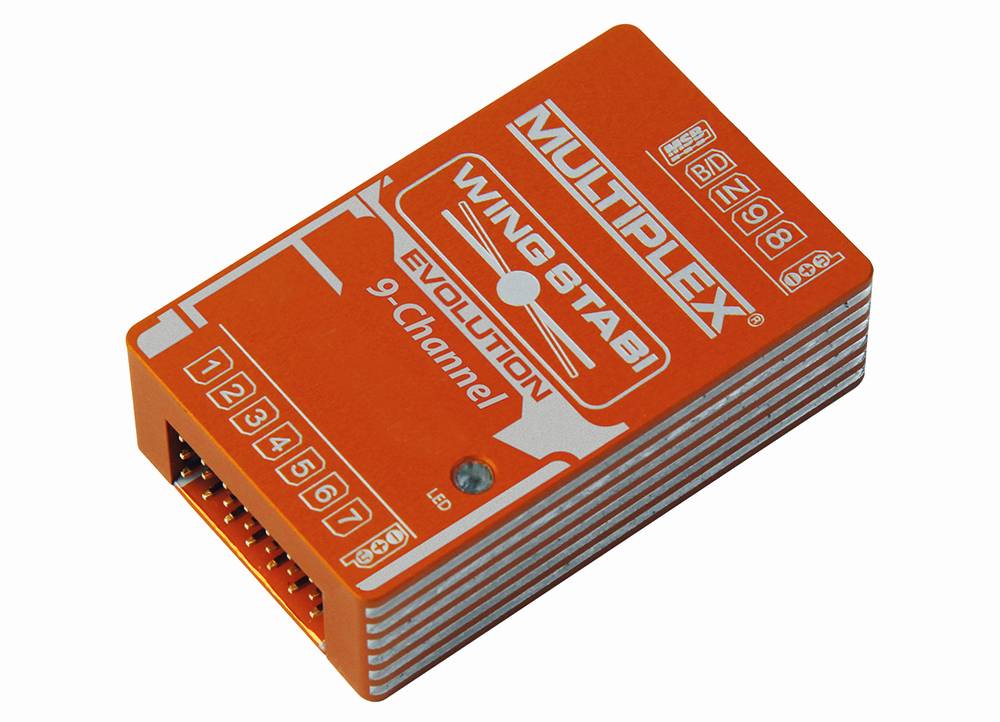

WINGSTABI EVOLUTION for fixed-wing models, 9 channel
Multiplex # 550111

The next evolutionary stage in flight stabilization for
fixed-wing models from Multiplex - Made in Germany

For the development of WINGSTABI Evolution, Multiplex has been able to create an enormous database over the years for a wide variety of flight models.
The WINGSTABI Evolution is the logical consequence of this and raises the product to a new level.
The control system has been fundamentally optimized in terms of its performance, latency, and basic settings.
All previous WINGSTABI systems can be updated to the Evolution software free of charge and without restrictions.
This allows the WINGSTABI Evolution to be used directly out of the box, with high performance and without problems, on almost all flight models.
Furthermore, a variety of new innovations and functions have been incorporated into the
WINGSTABI Evolution software, leaving nothing to be desired.
Examples include:

• A greatly improved basic setup for immediate take-off
• Introduction of optional speed-dependent control for optimal performance in every flight condition
• Introduction of a stop function for natural and gentle operation of the flight stabilization
• Possibility of dual receiver operation via SRXL for absolute safety during every flight
• Support for 8-flap wings, canards, optimized FAIL-Safe, and much more

Compatible with all common RC systems:

• Jeti (EX-Bus, UDI); Graupner (SUMD); Futaba (S.BUS); FrSky (S.BUS); Spektrum (SRXL); HiTEC (MAXIMA SL, OPTIMA SL)
  Weatronic (PPM); MULTIPLEX (SRXL);CORE (S.BUS, SRXL)

Distinction between WINGSTABI Evolution EasyControl and WINGSTABI Evolution Classic:

EasyControl
• The model is completely programmed on the transmitter as before (throws, flaps, expo, flight phases…)
• We need a free channel to which we assign a free proportional channel
• Very easy setup, even without a PC

Classic
• The model is almost completely programmed in the WINGSTABI (throws, mixes, flaps…)
• We need a free 3-position switch and at least one free proportional channel
• Extensive setup on PC or via APP

Every new Wingstabi Evolution is always delivered as "Evolution EasyControl" by default and can be reconfigured to "Evolution classic" free of charge via the MPX Launcher if required.
The WINGSTABI Evolution offers unbeatable value for money. Try it out and join us in the 21st century of model flying!

Speed compensation via pitot tube or GPS patent: DE 10 2013 201 554 B3 PowerboxSystems)

WINGSTABI EVOLUTION 9-channel
Freely programmable 3-axis gyro system for all RC fixed-wing models.
Compatible with all common RC systems

• Optimized high-end control behavior
• Optional speed-dependent control
• Plug & Play setup possible without PC
• Programming also possible via PC or Android app
• Up to 4 freely configurable flight/control phases
• 7/9 servo outputs
• Free channel assignment
• Individual setting for each servo (5-point curve, frequency, expo, fail-safe, …)
• Telemetry value output via MSB
• Extensive options for flaps and mixers (delta mixer, V-tail, canards, …)
• Diversity possible
