YGE Caps 5 for YGE ESCs, for ESCs up to 6S with extended leads
YGE Cap's 5 for YGE controllers, for controllers up to 6S LiPo

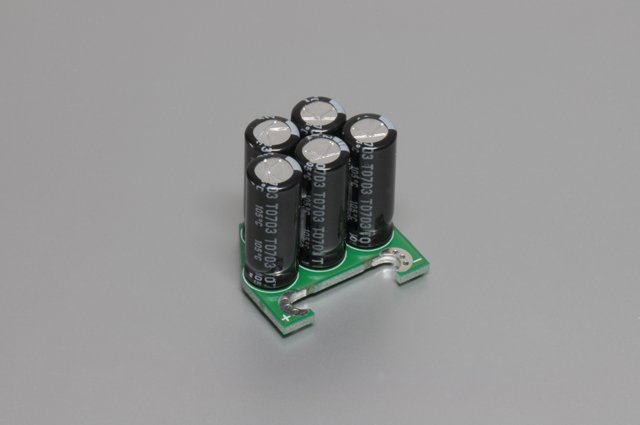

This CAPs 5 capacitor module is a very useful upgrade, perfectly matched for YGE speed controllers. It enables maximum partial load stability and optimal performance at the limit. The module is soldered as close as possible to the controller in the battery-side supply line. It is not necessary to cut the line. It is sufficient to remove the insulation over a length of approx. 5 mm.
The module serves to compensate for line inductance in the case of extended cables between the battery and the controller. Thus, all YGE controllers up to 6S can be equipped with the appropriate module for critical cable lengths.
Technical data:
- 5 pieces 330 µF ultra low ESR capacitors
- Operating voltage max. 25 volts (up to 6s Lipo)
- Solder cups for cables up to 6mm²
- Dimensions: 28x31x16 mm
- Weight: 10 gr.
Attention: When installing, pay attention to the correct polarity. The board is labeled accordingly. Reverse polarity will destroy the module!
