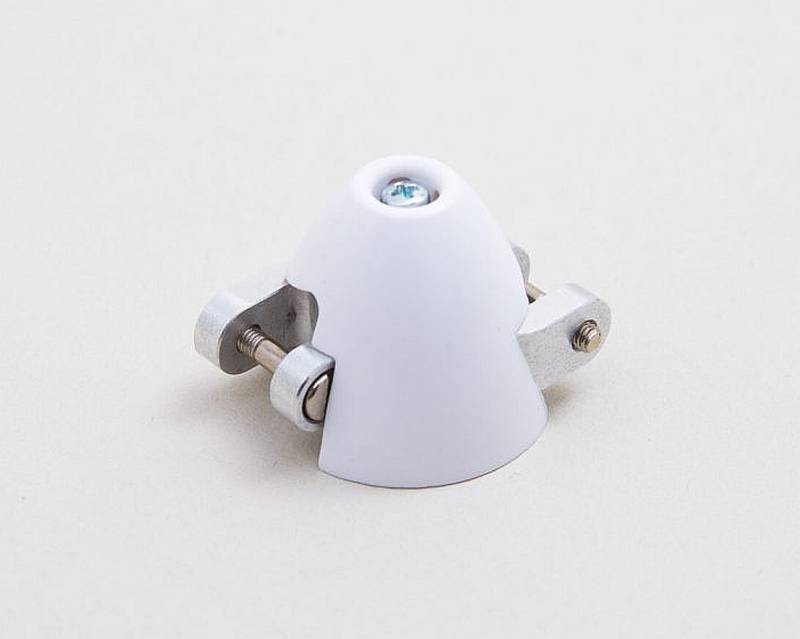

Z-Spinner CoolNose "Turbo", ø30mm
Aeronaut # 725171

Important: Please order the matching clamping cone separately (not included in delivery).

Z-Spinners combine the advantages of CN-Spinners (Cool Nose with cooling air openings) and angled Z-yokes. Due to the angled aluminum yokes, the folding propeller blades fold even closer to the fuselage, resulting in less air resistance during gliding flight. The spinners with yokes are designed for slim electric glider fuselages, but can also offer advantages, for example, on box-construction wooden fuselages if these are ground round.

The yokes of the 38, 40 and 42mm spinner sizes are interchangeable, so, for example, 38mm spinner caps can be used with the yoke of the 42mm spinner. These combination possibilities offer further optimization potential, as finer tuning to the respective fuselage is possible. The 30mm spinner has its own yoke, which is not compatible with the other spinner caps.

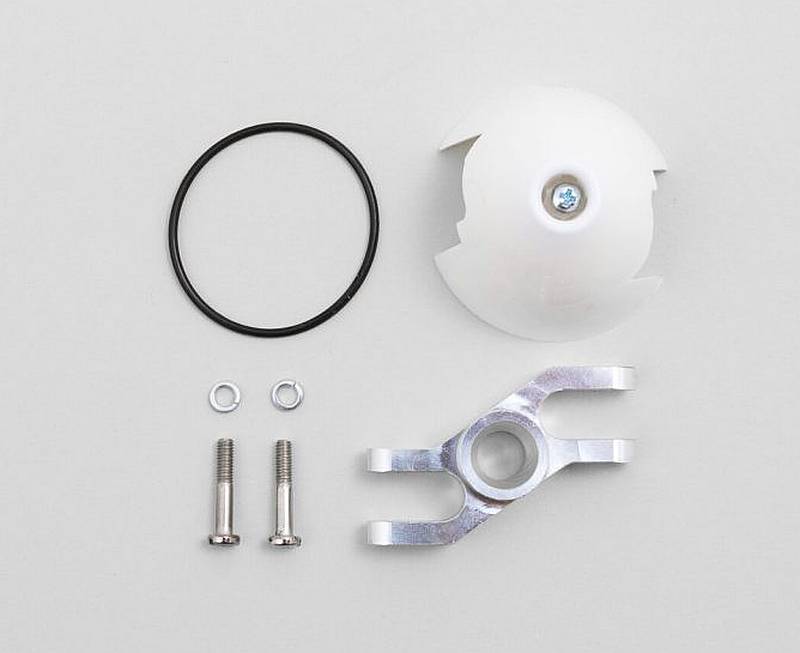

Scope of delivery:

• The Z-Spinner includes a white plastic spinner cap (very easy to paint)
• milled aluminum yoke with integrated mount for collet
• special prop rubber for folding the propeller blades
• mounting screws for spinner cap and propeller blades
