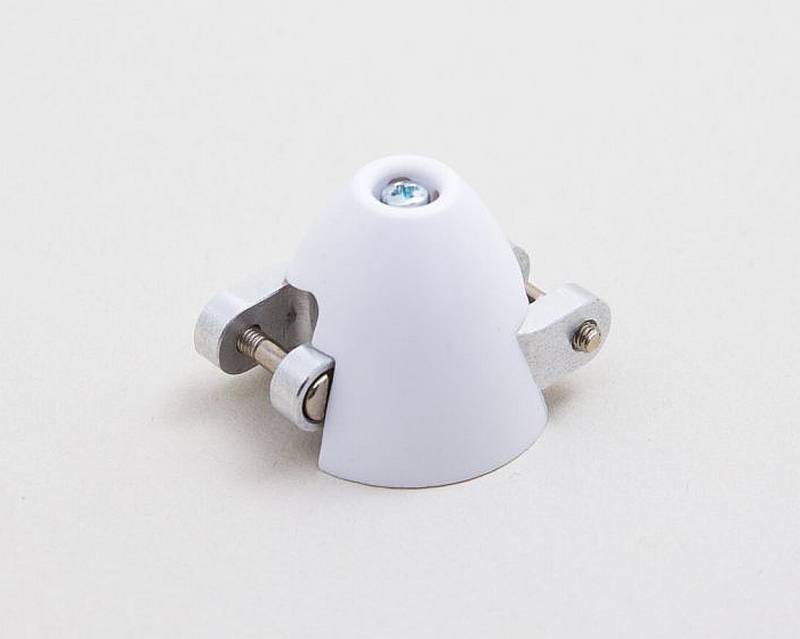

Z-Spinner CoolNose "Turbo", ø40mm
Aeronaut # 725175

Important: Please order the appropriate clamping cone separately (not included)

Z-Spinners combine the advantages of CN-Spinners (Cool Nose with cooling air openings) and the offset Z-yokes. The angled aluminum yokes allow the folding propeller blades to lie even closer to the fuselage, thus reducing air resistance during gliding. The spinners with their yokes are designed for slender electric glider fuselages, but can also offer advantages, for example, with wooden box-fuselages if these are sanded round.

The yokes of spinner sizes 38, 40, and 42mm are interchangeable, so, for example, 38mm spinner caps can be used with the yoke of 42mm spinners. These combination possibilities offer further optimization potential, as a finer adjustment to the respective fuselage is possible. The 30mm spinner has its own yoke, which cannot be combined with the other spinner caps.

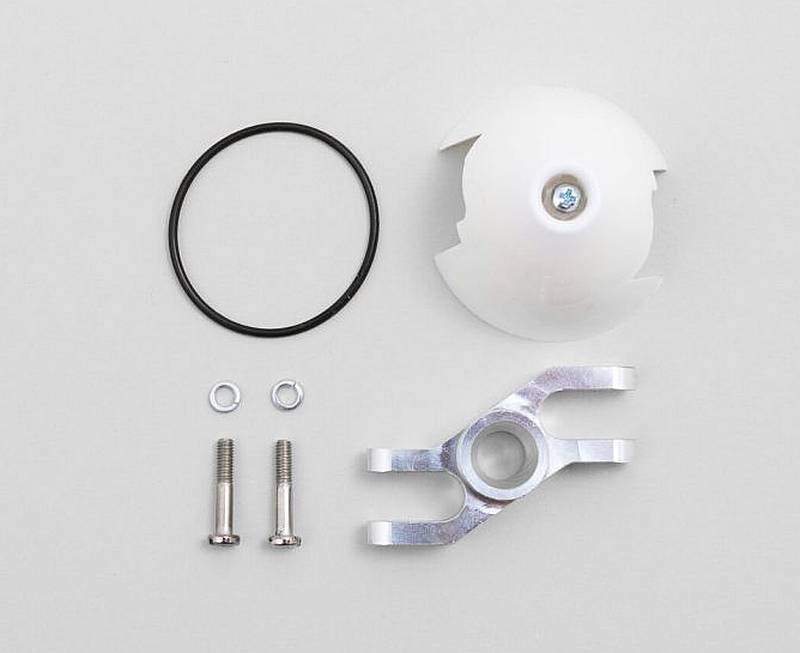

Scope of delivery:

• The Z-Spinner includes a white plastic spinner cap (very easy to paint)
• Milled aluminum yoke with integrated mount for clamping cone
• Special prop rubber for folding the propeller blades
• Mounting screws for spinner cap and propeller blades
