Zepsus Magnetic Switch with Charging Socket without Voltage Regulator 7A / 20A Short-term, for F3B/F3J/F5B

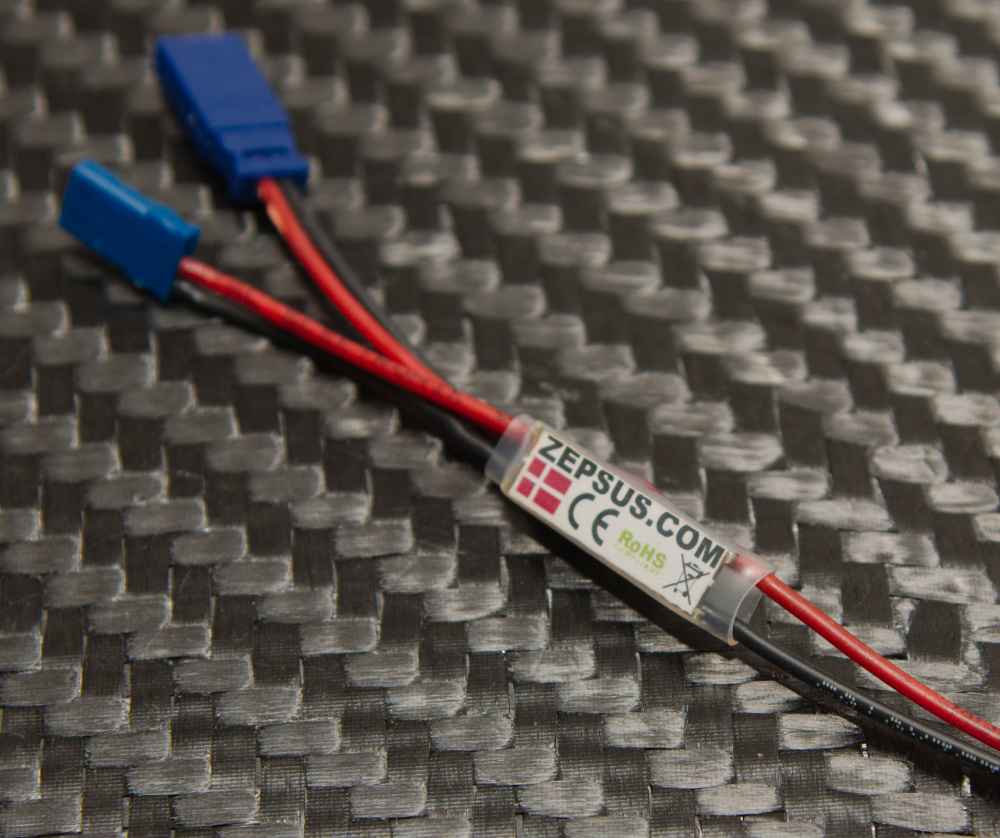

Zepsus Magnetic Switch without Voltage Regulator, with Charging Socket
7A Continuous/20A Short Term for F3B/F3F/F3J/F5B
Small and powerful magnetic switch for very slender fuselages such as those found in F3B / F3F / F3J / F5B. With this switch, the receiver system can be switched on or off by stroking a magnet over the switch, which is located on the inside of the fuselage side wall.
When switched off, the magnetic switch has very low current consumption (~ 5µA), so if a 300mAh battery is connected, the battery can remain connected for an extended period without being deep-discharged.
The Zepsus magnetic switch has a built-in safety function: it "remembers" its state for at least 10 seconds if it is disconnected from the battery. This protects the switch against voltage interruptions caused by, for example, poor battery connection, etc.
The switch is "Made in Denmark".
Technical Data:
- Input voltage: 3 - 13V
- 7A continuous load, 20A peak load
- Standby: 5µA
- Connection cable: Silicone cable with 0.5mm²
- Weight with cable: 5.3g
- Length with cable: 180mm
- Dimensions: 25 x 8 x 5mm
All switches are tested with 10A for 30 seconds before delivery. The standby consumption is measured and a visual inspection is carried out.
