Zepsus Magnetic Switch with 5.7V Voltage Regulator, 7A Continuous/20A Peak, for F3B/F3J/F5B
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Zepsus Magnetic Switch with 5.7V Voltage Regulator, 7A Continuous/20A Peak, for F3B/F3J/F5B
Zepsus Magnetic Switch with Voltage Regulator 5.7V, 7A Continuous/20A Peak for F3B/F3F/F3J/F5B

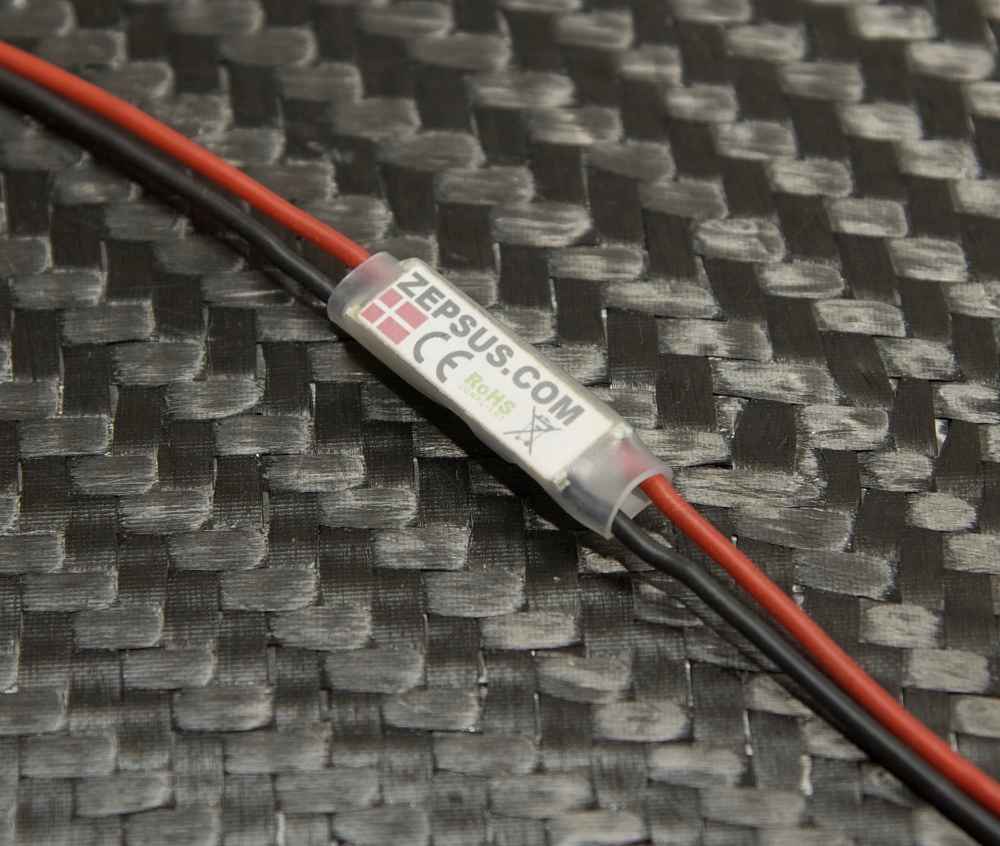

Small and powerful magnetic switch with linear BEC for very slim fuselages such as F3B / F3F / F3J / F5B. This switch allows the receiver system to be switched on or off by passing a magnet over the switch, which is located inside the fuselage sidewall.
The magnetic switch has very low current consumption in the off state (~ 5µA), so with a connected 300mAh battery, the battery can remain connected for a longer period without being deep-discharged.
The Zepsus magnetic switch has a built-in safety function: it "remembers" its state for at least 10 seconds if it is disconnected from the battery. This protects the switch against voltage interruptions due to, for example, poor battery connections, etc.
The switch is "Made in Denmark".
Technical data:
- Input voltage: 3 - 13V
- Output voltage: 5.7V (Designed for 2S Lipo/LiIon/LiFe or 5S NiMH/NiCD batteries)
- 7A continuous load, 20A peak load
- Standby: 5µA
- Connection cable: Silicone cable with 0.5mm²
- Weight with cable: 4.3g
- Length with cable: 180mm
- Dimensions: 25 x 8 x 5mm
All switches are tested with 10A for 30 seconds before delivery. The standby consumption is measured and a visual inspection is carried out.
