(Delivery without servo, of course!)

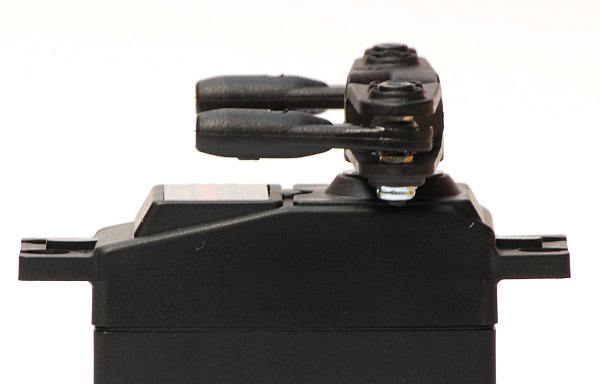

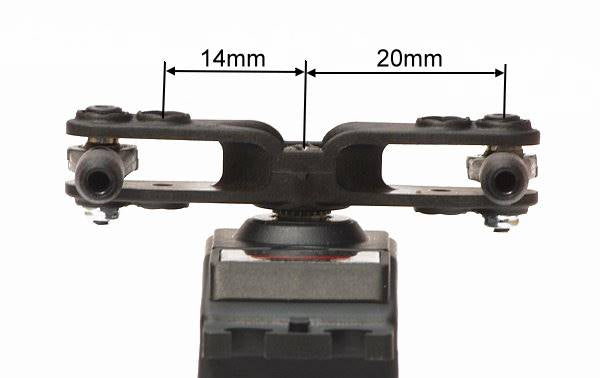

14/20mm Double Fork Servo Arm for Hitec Servos, PU 1 piece

This double fork lever is ideally suited for all linkages in a push/pull arrangement. To ensure that the high torque of modern digital servos can be transmitted to the rudder smoothly and without play, the fork servo arms have been designed for extreme loads. The force is transmitted centrally to the servo gearing, which prevents the servo output from jamming. The servo arms are made of highly compressed carbon fiber plastic. At 300 °C and under high pressure, the levers are shaped in hardened stainless steel molds. Since this process is similar to the manufacturing of highly stressed components in large aircraft construction, it has been adopted for the production of these servo arms. The result is a high-strength lever that does not need to shy away from comparison with aluminum. However, it is lighter and more vibration-resistant than aluminum. All servo arms are manufactured in Germany on state-of-the-art CNC machines.

The delivery includes a pre-installed ball joint item no. 993008. Optionally, you can also mount ball joints item no. GG993009 (for threaded rod M2.5) and item no. GG993010 (for threaded rod M3). These are not included in the scope of delivery and must be ordered separately.

Scope of delivery:

• 1x Double fork servo arm
• 2x Ball head M2 (pre-mounted)
