(Delivery without servo, of course!)

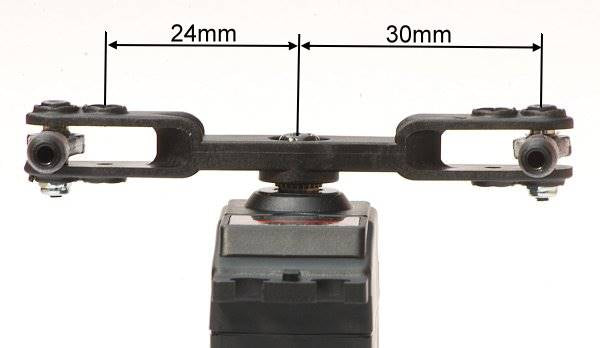

24/30mm Double Fork Servo Arm for Hitec Servos, PU 1 piece

This double fork lever is ideal for all push/pull linkages. To ensure that the high torque of modern digital servos can be transmitted to the rudder smoothly and without play, the fork servo arms have been designed for extreme loads. The force is transferred centrally to the servo gearing, which prevents the servo output from tilting. The servo arms are made of highly compressed carbon fiber plastic. At 300 °C and under high pressure, the levers get their shape in hardened stainless steel molds. Since this process has similarities with the production of highly stressed components in large aircraft construction, it was adopted for the production of these servo arms. The result is a high-strength lever that does not shy away from a comparison with aluminum. However, it is lighter and more vibration-resistant than aluminum. All servo arms are manufactured in Germany on state-of-the-art CNC machines.

Delivery includes the pre-installed ball joint item no. 993008. Alternatively, you can also mount the ball joints item no. GG993009 (for threaded rod M2.5) and item no. GG993010 (for threaded rod M3). These are not included in the scope of delivery and must be ordered separately.

Scope of delivery:

• 1x Double fork servo arm
• 2x Ball head M2 (pre-assembled)
