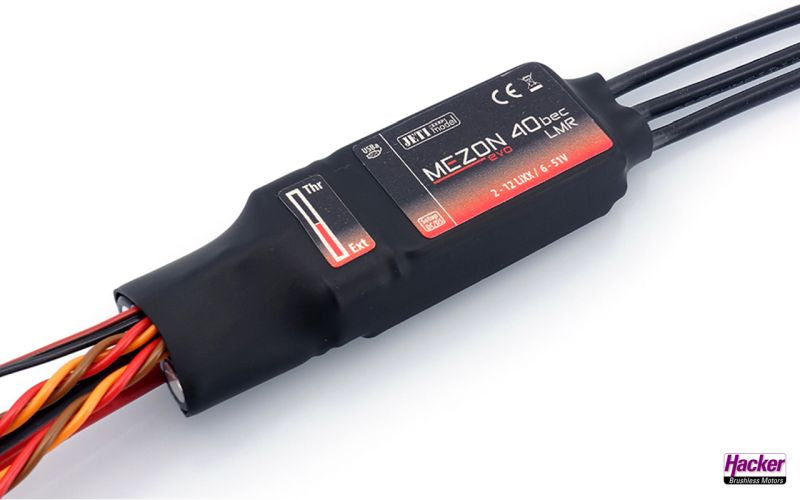

Flight controller Mezon EVO 40 BEC, LMR, 2 - 12 LiXX, 15/30A BEC
Flight Controller Mezon EVO 40 BEC, LMR, 2 - 12 LiXX, 15/30A BEC
Product description and features:
The MEZON EVO 40 LMR controllers are the successors to the previous product line of MEZON PRO LMR controllers. This controller is specially designed for the lowest possible weight and is mainly intended for glider models. Here, continuous motor operation is limited to a few seconds, and the subsequent gliding flight serves to cool the controller. The controller's software does not limit the operating time; it only monitors the maximum temperature. This prevents the controller from being destroyed by overheating. It is the pilot's responsibility to ensure appropriate operation.
The setup wizard helps the user to set up the controller intuitively and quickly with the help of the JETI Duplex transmitter. The MEZON EVO 40 LMR is an absolutely universal controller for users not only of JETI Duplex transmitters but also of other RC systems.
Functions:
- full EX telemetry (voltage, current, capacity, RPM, etc.)

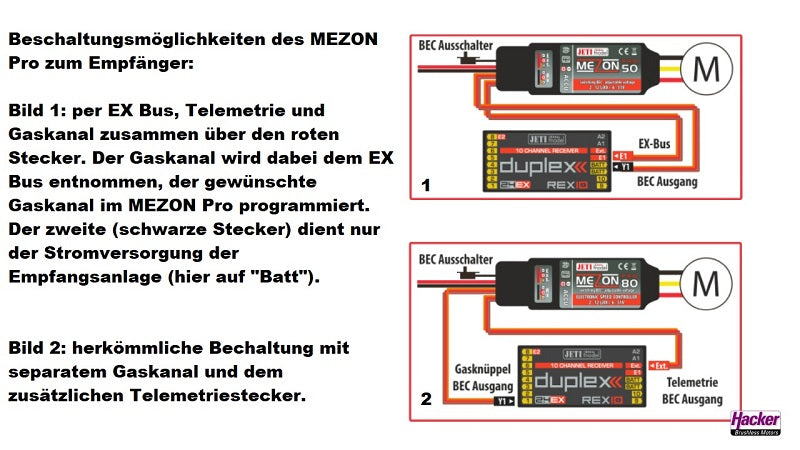

- Controller setup via EX-Bus communication from the JETI Duplex transmitter via the device overview
- Precise controller and full support
- adjustable brake with regenerative energy recovery to the battery
- powerful BEC with adjustable output voltage
- wide input voltage range 2 - 12 LiXX (max. 51V)
- bidirectional motor operation possible (forward/reverse) active proportional brake
- compact dimensions
- user-friendly setup wizard for convenient and quick adjustment ("Quick Setup mode")
- an "Expert mode" with access to all settings
- no heatsink, "LMR" means "Limited Motor Runtime" = for short motor runtimes, such as in glider operation
- high efficiency
- firmware upgrade possible
- wide range of adjustable parameters
Technical data:
- Weight [g]: 75
- Dimensions [mm]: 26 x 18 x 83
- Continuous current [A]: 40
- Peak current (max 30s) [A]: 40
- Telemetry: Yes
- Operating temperature [°C]: -10 to 85
- Supply voltage [V]: 6 to 51
- LiXX batteries: 2 to 12
- BEC voltage [V]: 5 to 8.4
- Continuous BEC current [A]: 15
- Short BEC current 1s [A]: 30
- Resistance switched through [mO]: 2 x 1.2
- Conductor cross-section (input/output) [mm²]: 2.5 / 2.5
- Housing: Heat shrink tubing
Scope of delivery:
- 1x MEZON EVO 40 BEC LMR
- 1x Manual
