(Delivery without servo, of course!)

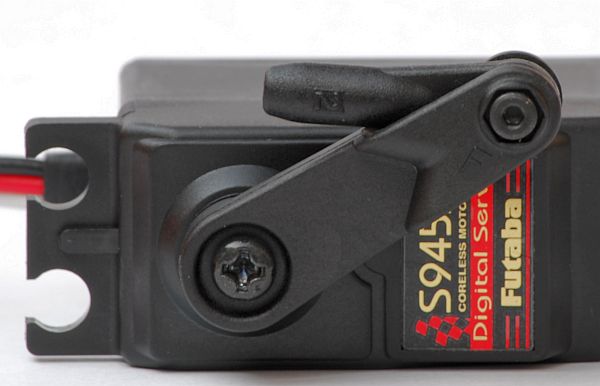

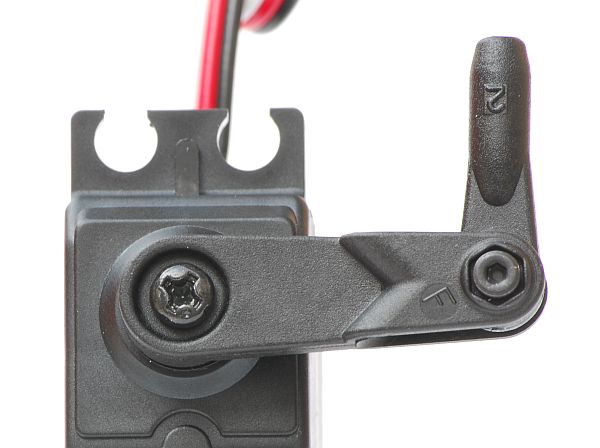

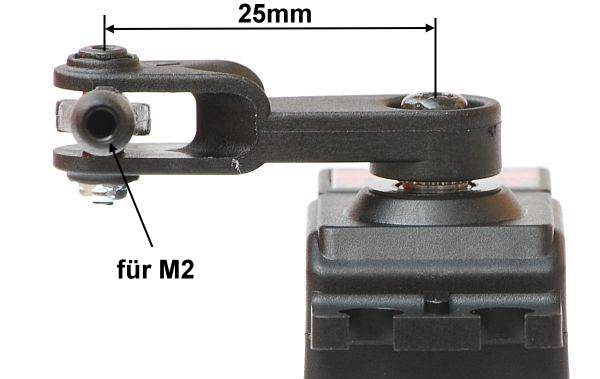

25mm Fork Servo Arm for Graupner/JR Servos, Pack of 1

To ensure that the high torque of modern digital servos can be transmitted to the rudder without play and with smooth movement, the fork servo arms have been designed for extreme loads. The force is transferred centrally to the servo gearing, which prevents jamming of the servo output. The servo arms are made from highly compressed carbon fiber plastic. At 300 °C and under high pressure, the arms are formed in hardened stainless steel molds. Since this process is similar to the manufacturing of highly stressed components in large aircraft construction, it has been adopted for the production of these servo arms. The result is a high-strength arm that compares favorably with aluminum. However, it is lighter and more vibration-resistant than aluminum. All servo arms are manufactured in Germany on state-of-the-art CNC machines.

Delivery includes a pre-installed ball joint item no. 993008. Optionally, you can also install ball joints item no. GG993009 (for threaded rod M2.5) and item no. GG993010 (for threaded rod M3). These are not included in the scope of delivery and must be ordered separately.

Scope of delivery:

• 1x Fork servo arm
• 1x Ball head M2 (pre-assembled)
