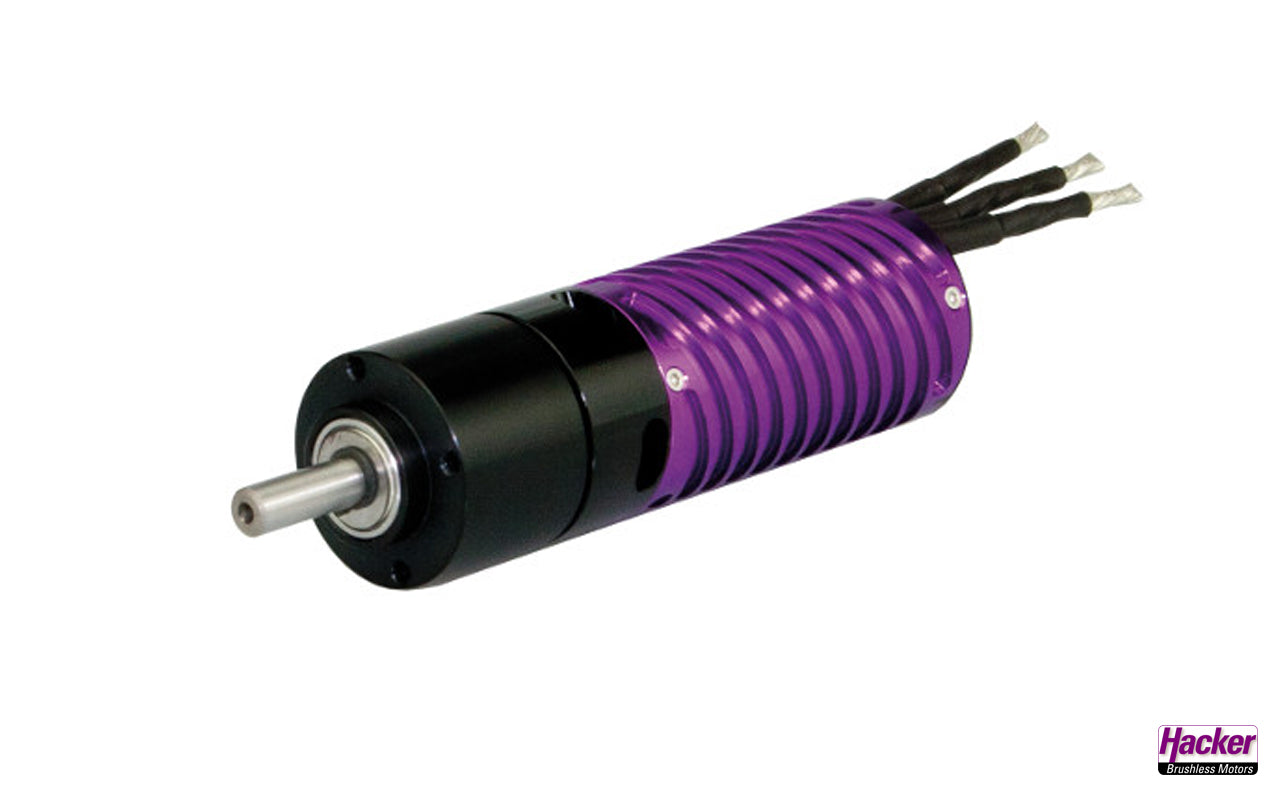

Hacker B40-7L 6.7:1 Competition, Hacker # 10090903

A completely new external housing design with milled cooling fins offers ideal heat dissipation while maintaining low weight. In addition, an internal fan effectively provides good cooling. Running noise is reduced to a minimum by the asymmetrically positioned air outlet holes.

This design is already successfully used in the Hacker C50–Competition series. The front and rear end shields are screwed. A very high efficiency is achieved with a new, segmented high-performance rotor made of optimized magnetic material. The B40-Competition is equipped with larger ball bearings than the normal Hacker B40. This significantly reduces friction and improves service life. In addition, a larger internal shaft with a 5mm diameter prevents vibrations at extreme speeds.

The shaft is already equipped with an integrated pinion. The increased power output of the B40-Competition motors is ensured by a strong gearbox with a 6mm output shaft.

Application: F3J, F5J, F3B, light thermal gliders up to 4m wingspan and max. 3.5kg.

Max. peak current
100 A
Short-term power
1200 (10sec.) W
RPM per volt
490 KV

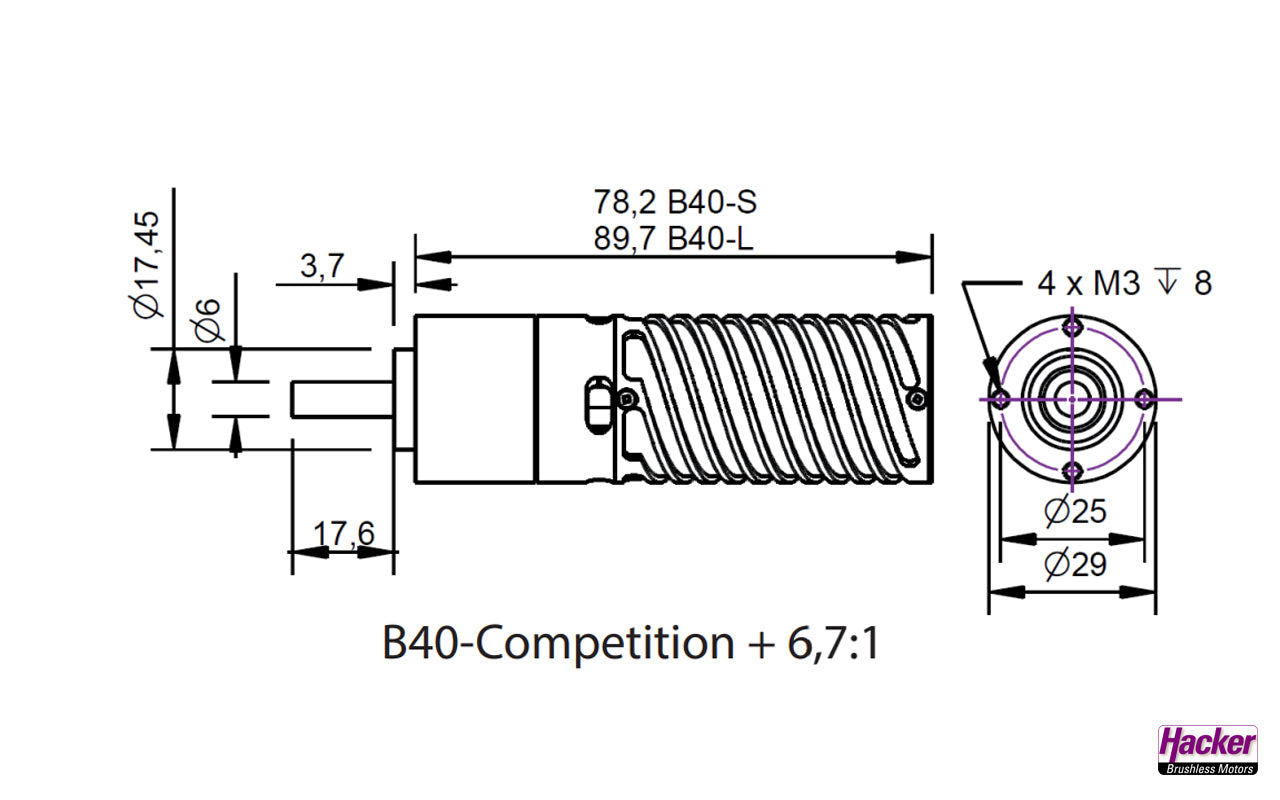

Dimensions (dia. x L)
29 x 89.7 mm
Weight
237 g
Motor shaft dia. x length
ø6 x 17.6 (gear shaft) mm
Drive type
Getriebemotor
Gear ratio
6.7
