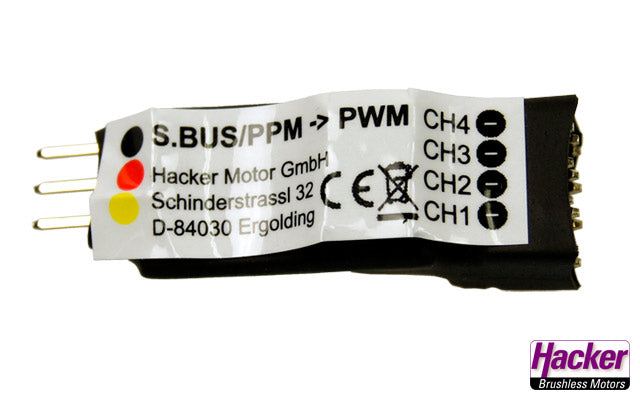

Jeti/Duplex S.BUS/PPM->PWM Converter CH1-4

Product Description and Features

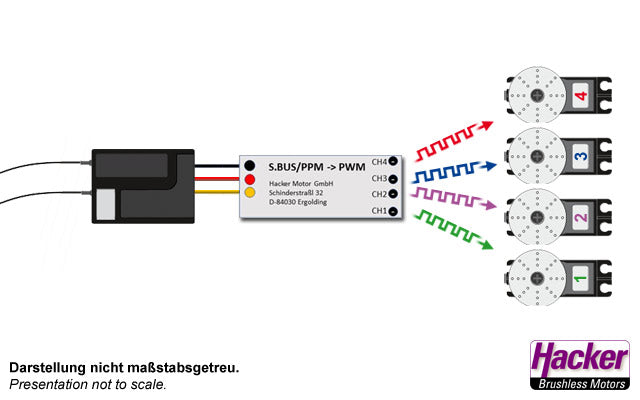

The S.BUS/PPM->PWM Converter can control up to four servo channels from an S.BUS/PPM output.

This is ideal when the required receiver would not fit in a model with a very slim fuselage due to its size, and the slots of the next smaller receiver need to be expanded.

The S.BUS/PPM->PWM Converter is suitable for receivers that can output an S.BUS or PPM (negative) signal (e.g., all JETI REX receivers). The input signal is automatically recognized and converted into PWM (servo signal). The servo signal output is provided with control channels CH1-CH4 or CH5-CH8, depending on the variant.

If an assignment of the model's servo channels is required, this is done in the menu of the transmitter used.

For connecting the S.BUS/PPM->PWM Converter to the receiver, we recommend the high-quality Premium² Patch Cable. You can find this under the "Accessories" tab in various lengths.

Important Notes

• Due to its compact and lightweight design, the S.BUS/PPM->PWM Converter is only approved for servos up to 1.5 Amperes per output.
• Power servos and main control functions with high current consumption must not be operated on the converter.
• Do not operate on the CentralBox 200 and 400 (or their connected receivers), as the outputs of these CentralBox 200/400 are not designed to power multiple servos.
• On the CentralBox 210/220, observe the maximum current load of a "E2/15" slot. Only operate "secondary functions."

Scope of Delivery

• S.BUS/PPM->PWM Converter CH1-4, Quick Guide, Sticker Set
