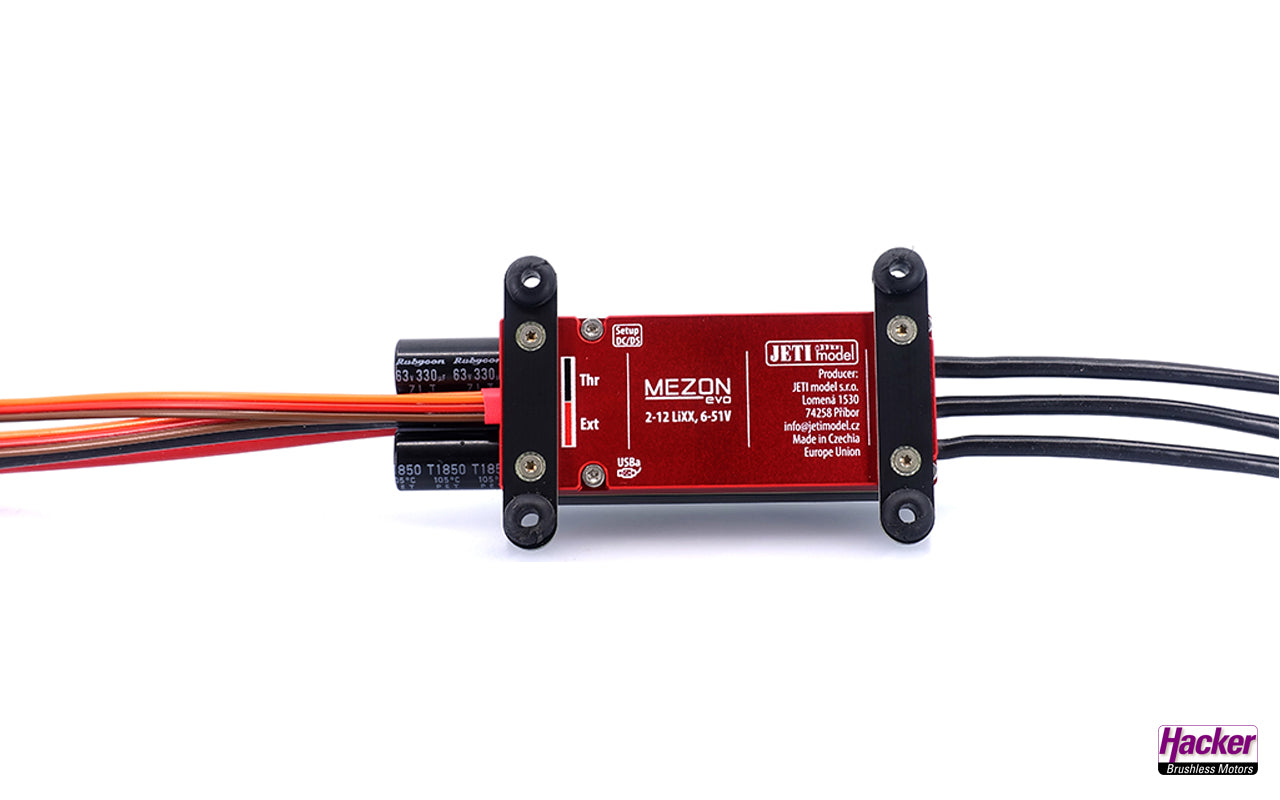

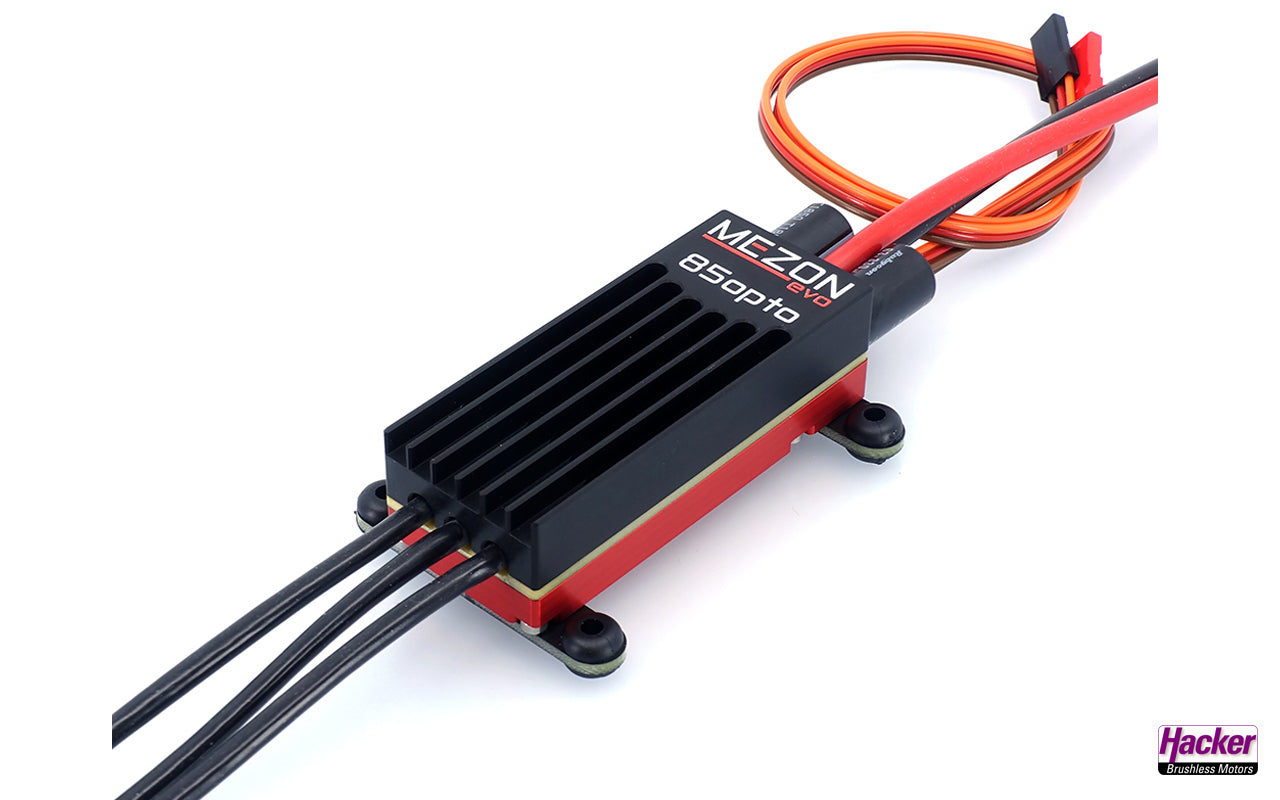

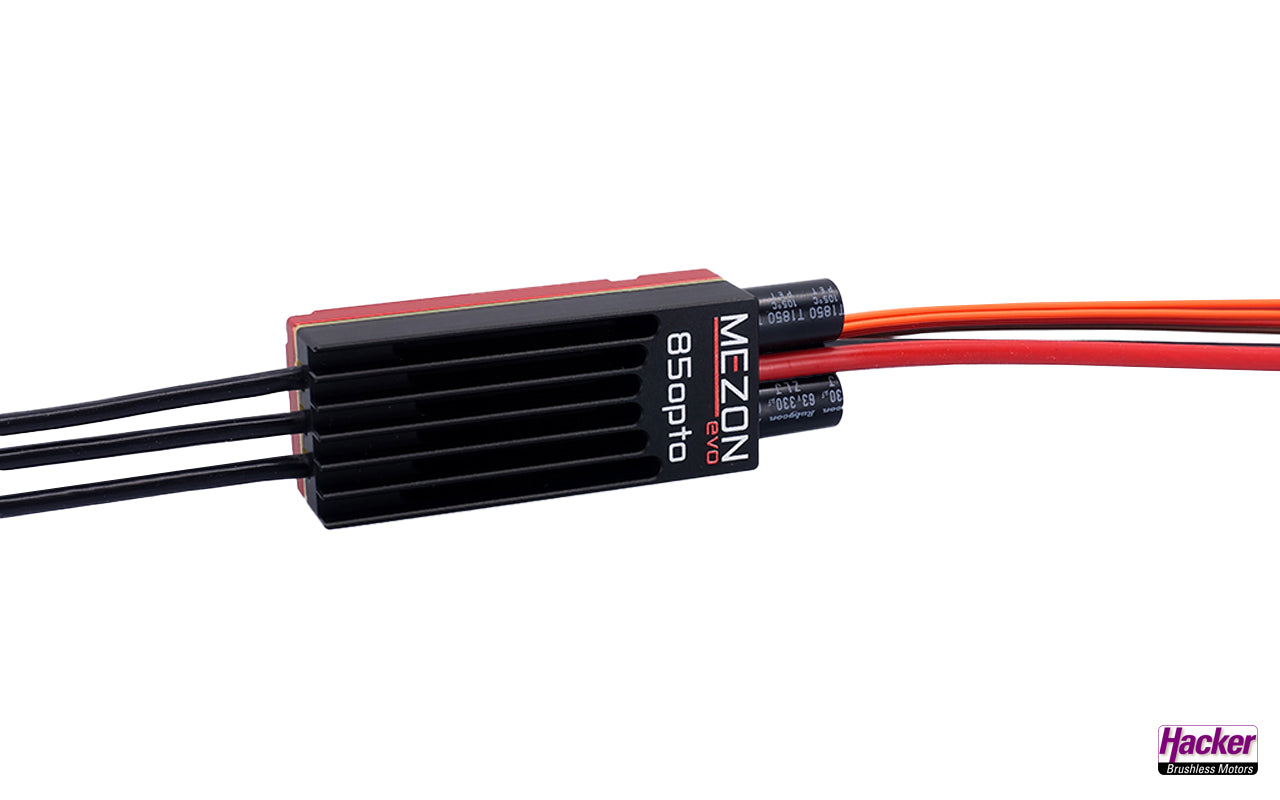

MEZON EVO 85 OPTO, 2 - 12 LiXX, 85A continuous current, Hacker # 11039045
MEZON EVO 85 OPTO, 2 - 12 LiXX, 85A Continuous Current, Hacker # 11039045
Product Description and Features
The MEZON EVO controllers are the successors to the previous MEZON PRO controller product line. The main advantages of this series are very effective cooling, full telemetry, speed control for helicopter operation, and F3A mode. MEZON EVO controllers have an aluminum casing (except for LMR types), which contributes to efficient cooling. The setup wizard helps the user to set up the controller intuitively and quickly using the JETI Duplex transmitter. The MEZON EVO is an absolutely universal controller for aircraft, helicopter, boat, and vehicle models for users not only of JETI Duplex transmitters but also other RC systems.
Functions
- full EX telemetry (voltage, current, capacity, RPM, etc.)
- controller setup via EX-Bus communication from the JETI Duplex transmitter via the device overview
- precise governor and full support for helicopter models
- F3A mode for aerobatic models
- adjustable brake with energy recovery to the battery
- maximum interference immunity thanks to optocoupler; separate power supply for the receiver required.
- wide supply voltage range 2 - 12 Lixx (max. 51V)
- bidirectional motor operation possible (forward/reverse)
- active proportional brake
- compact dimensions
- user-friendly setup wizard for convenient and quick adjustment ("Quick Setup mode")
- an "Expert mode" with access to all settings
- high efficiency
- firmware upgrade possible
- wide range of adjustable parameters
Technical Data
- Weight [g]: 83
- Dimensions [mm]: 28 x 20 x 85
- Continuous current [A]: 85
- Telemetry: Yes
- Operating temperature [°C]: -10 to 85
- Supply voltage [V]: 6 to 51
- LiXX Batteries: 2 to 12
- Resistance switched through [mOhm]: 2 x 1.2
- Conductor cross-section (input/output) [mm²]: 4.0 / 2.5
- OPTO: Yes
- Housing: Aluminum
Scope of Delivery
- 1x MEZON EVO 85 OPTO

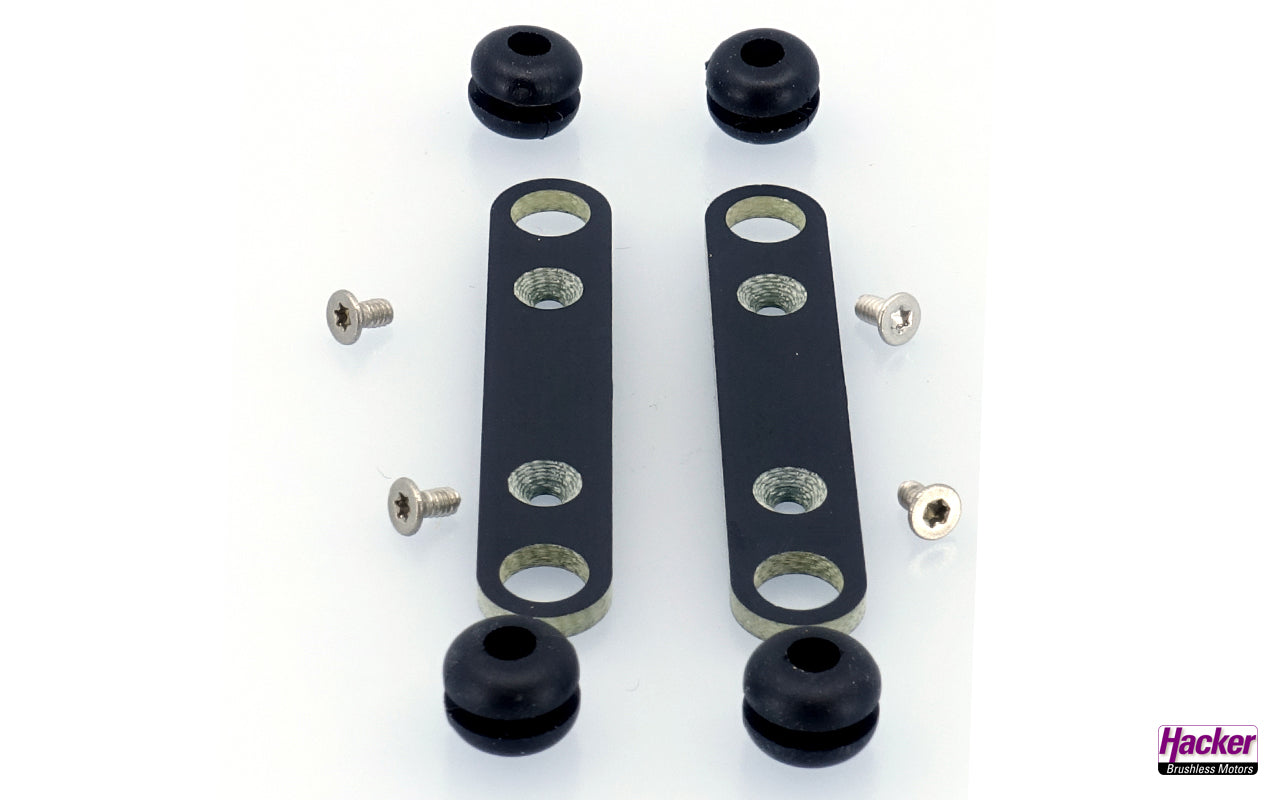

- 1x Mounting Kit
- 1x Manual
