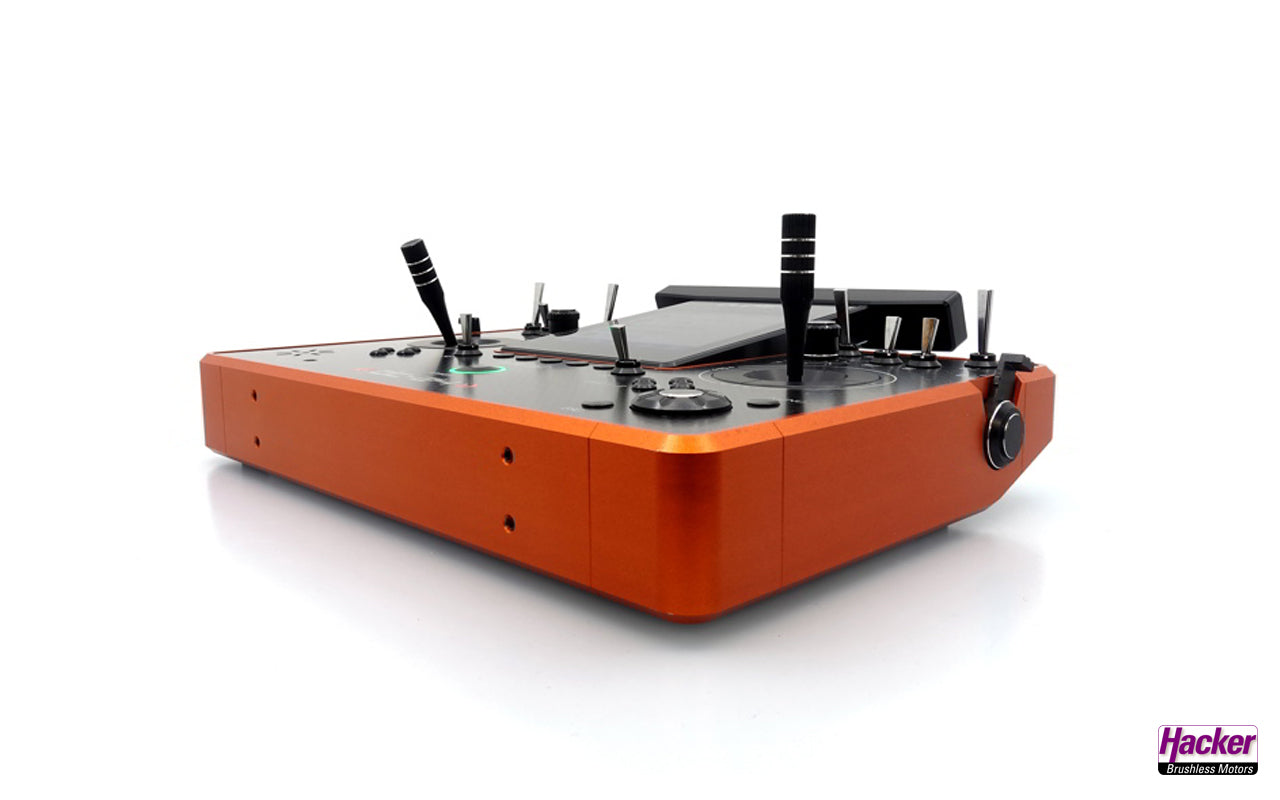

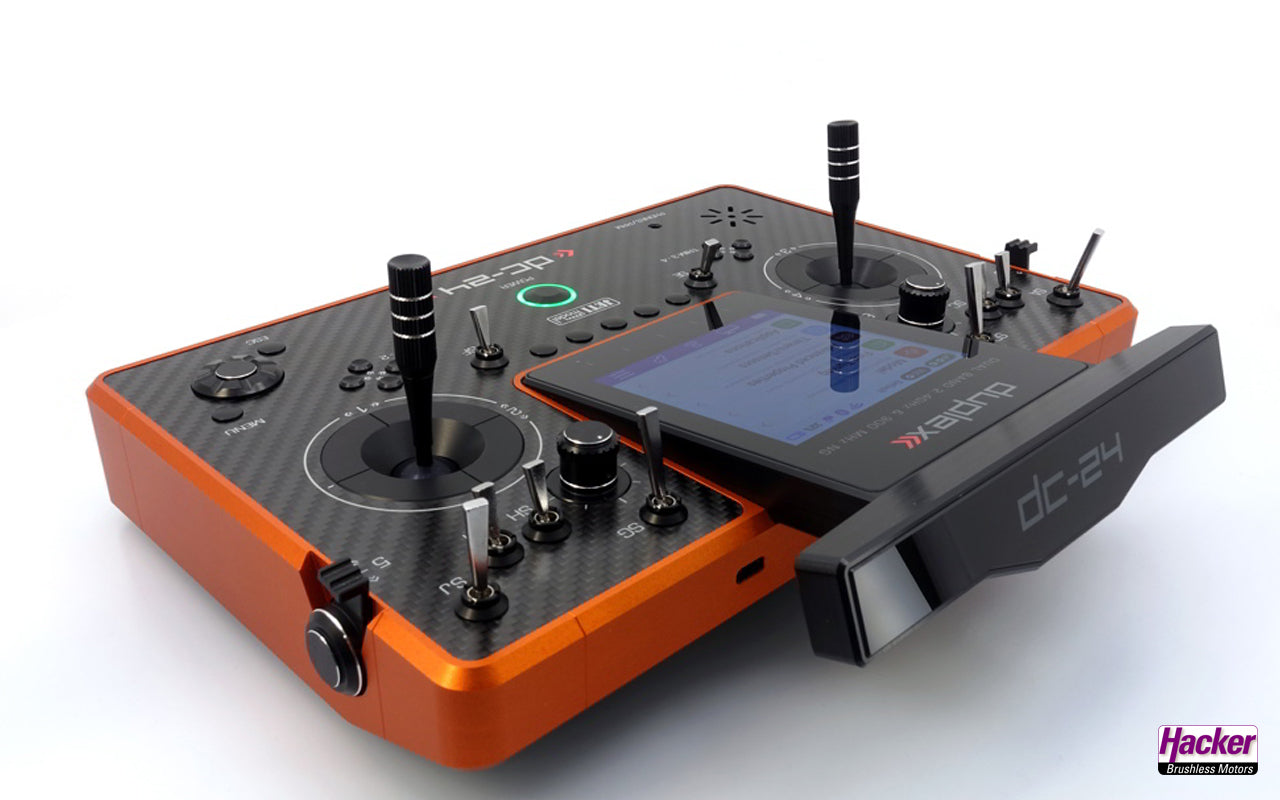

Tray Transmitter DC-24 II, Carbon Line Orange

Scope of delivery:

• Tray Transmitter DC-24 II - Carbon Line Orange (Factory default Mode 2, control mode very easy to change)
• Transmitter battery installed
• Charger for transmitter battery
• Sturdy transport case
• Transmitter neck strap
• DUPLEX 2.4EX REX 12 Assist

Features:

• 24 full control channels
• 3 RF modules (2x 2.4Ghz + 1x 900Mhz NG)

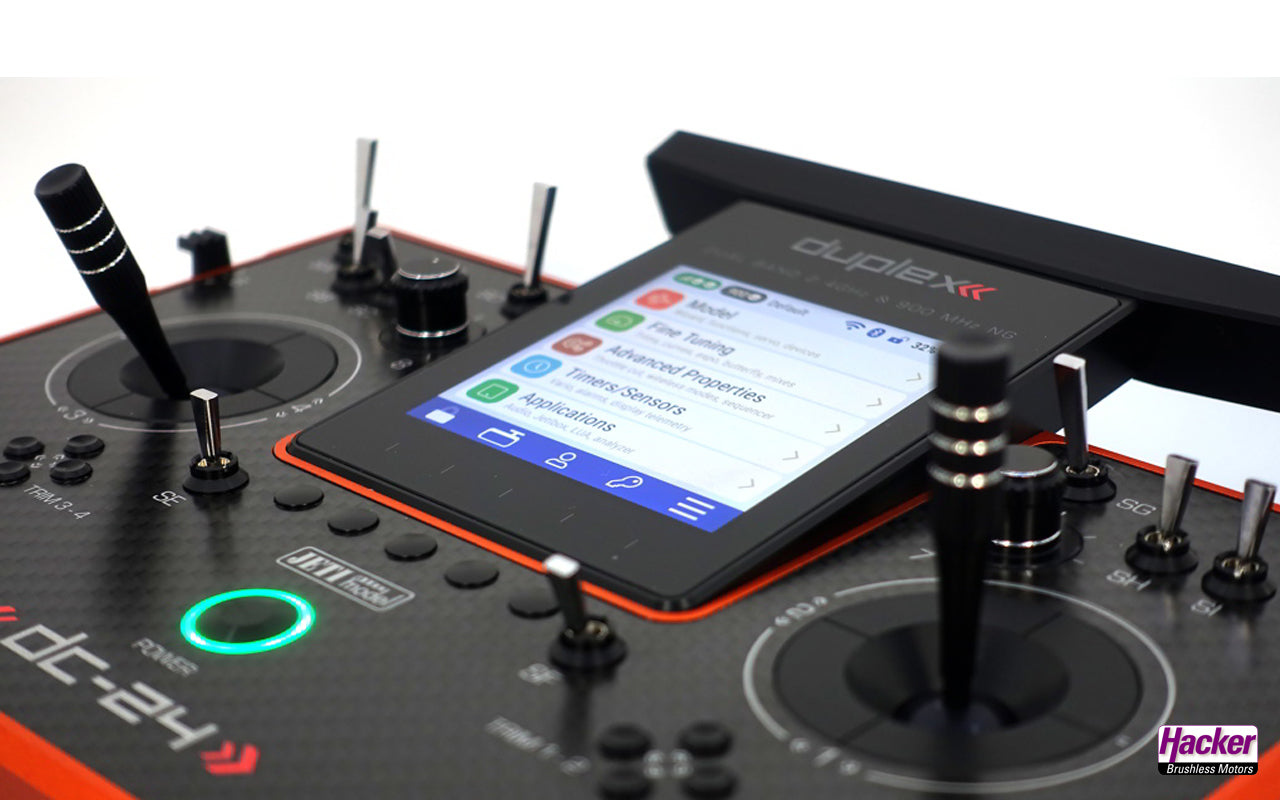

• Color display 4" (72x72mm)
• Display tilted in the housing
• New graphical user interface design (menu)
• USB-C port (for charging / PC / MAC connectivity)
• Audio transmission via Bluetooth to a headset (e.g. Vario tone, announcements, alarms)
• WLAN connection
• Android / iOS App for telemetry display for smartphones
• Reduced weight
• 4 model types (fixed-wing/heli/multicopter/boat, truck)
• MP3 Player
• Telemetry processes up to 80 sensor values
• Voice input commands
• Vibration alarm on the control sticks

Transmitter Hardware:

• Multimode control sticks
• Stick position determination by Hall sensors (without potentiometers)
• Control travel resolution 4096 steps
• Color display, backlit
• Rotatable stick units
• Full aluminum control sticks/units, length adjustable, ball-bearing
• Internal memory
• Integrated Li-Ion battery for long operating time
• Charger
• Aluminum transport case
• Voice output
• Headphone jack
• Digital trims
• Anodized aluminum housing

Transmitter Software:

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Virtually unlimited setting options
• Virtually unlimited number of model memories
• Firmware update via USB / WLAN
• Ultra-fast control responses
• Power management system for longer operating time
• PC interface
• 4 adjustable model types (airplane/heli/functional model/multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry functions:

• Voice output of telemetry warnings and telemetry values
• Real-time display of telemetry data on the transmitter display
• Recording of telemetry data
• PC transfer
• Storage and editing of telemetry values

Saving (backup) of model data and transmitter settings on the PC 900Mhz NG receiver system: The 900Mhz NG receiver is specially designed to be operated with the DC/DS-24. It is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if the 2.4Ghz band is interfered with (e.g. by directional radio, during copter flights for television broadcasts, etc.). The 900Mhz NG backup system only becomes active if this occurs. This significantly increases safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.

Technical data:

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1400
