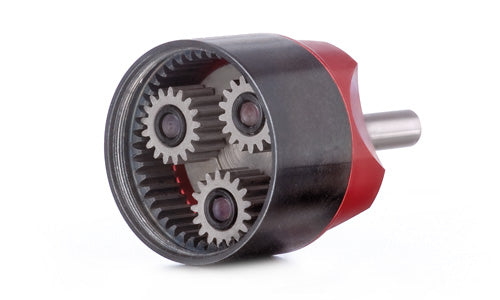

KPG 27 gearbox, 4.2:1 with pinion ø3.17 shaft, without flange, Kontronik # 03743
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
KPG 27 gearbox, 4.2:1 with pinion ø3.17 shaft, without flange, Kontronik # 03743
KPG 27 Gearbox, 4.2:1 with pinion ø3.17 shaft, without flange, Kontronik # 03743
Kontronik offers the KPG27 gearbox pre-assembled on their FUN 500/600 motors. However, they can also be retrofitted to all motors with a 3.17mm shaft diameter using an adapter flange.
The gearbox includes the motor pinion, which must be glued to the shaft by you using a Loctite adhesive (e.g., 648 or 2701, not included). The bond can be released with heat. The scope of delivery also includes needle-bearing planetary gears and basic lubrication.
The matching adapter flange must be purchased separately if a direct drive is subsequently converted to a gearbox.
The KPG27 should be used for power outputs of approximately 400 watts or more, as it uses a 6mm output shaft compared to the KPG25.
